| Nguồn gốc: | Trung Quốc Henan |
| Hàng hiệu: | SIMO |
| Chứng nhận: | CE, ISO9001:2008,TUV |

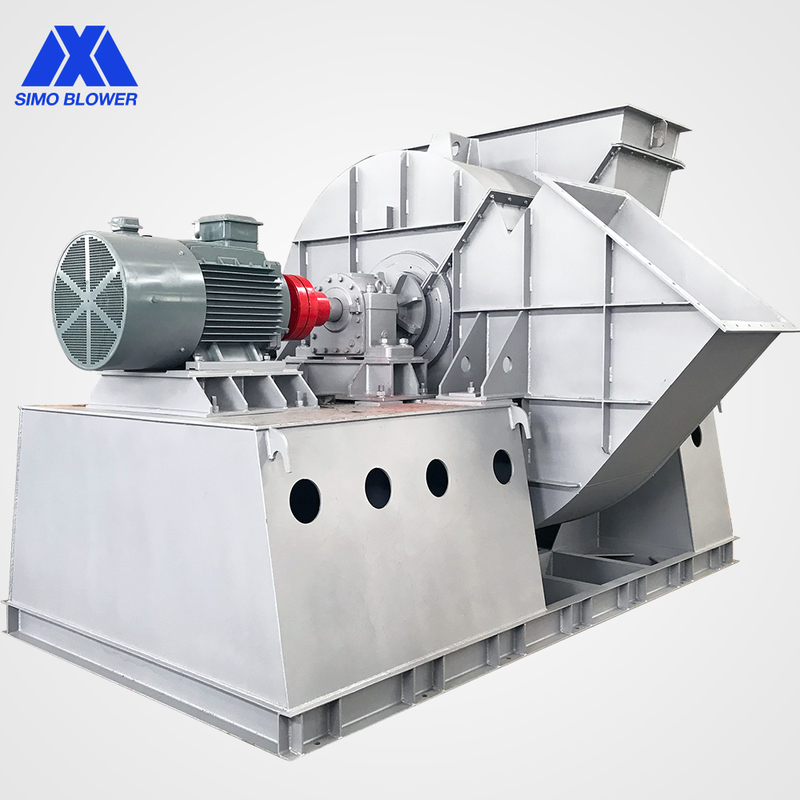

| Số mô hình: | Máy thổi SIMO 4-10 |
| Series no. | 4-10 series | Feature selection |
|---|---|---|
| Performance | Impeller diameter | 400-3000mm |
| Rotation speed | ≤4000rpm | |
| Pressure range | 615-8302Pa | |
| Flow range | 10696-952530m³/h | |
| Structure | Blade type | Backward, Straight, Aerofoil type |
| Impeller support | SWSI, DWDI, Overhung type | |
| Lubrication method | Oil bath, grease, lubrication oil station | |
| Cooling method | Air cooling, Water cooling, Oil cooling (Can be specified) | |
| Driven mode | Direct driven, Coupling driven, Belt driven (Can be specified) | |
| Gas composition | Gas temperature | Normal, Customer request, ≥250ºC |
| Gas characteristic | Clean gas, Corrosive gas, Particulate dust, High temperature gas, Flammable/explosive gas | |
| System configuration | Motor brand | Chinese famous brand, ABB, Siemens, WEG etc (Can be specified) |
| Impeller | Various materials available based on application requirements | |
| Option parts | System base frame, Protective screening, Silencer, Flexible connections, Counter flange, Air damper, Electric actuator, Shock absorber, Couplings, Motor rain cover, Sensors, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument. | |
If you have requirements for our products, please provide your parameter information and our technical engineers will provide professional fan solutions.
