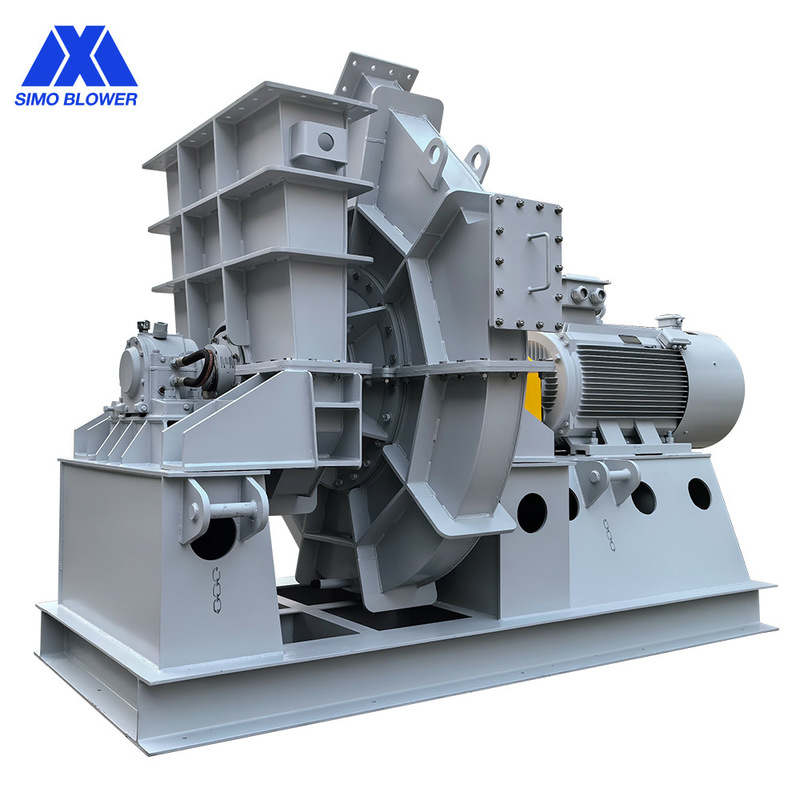

Single Suction Heavy Duty Antiwear Cement Mill Industrial Centrifugal Blower Fan

Name: Single Suction Heavy Duty Antiwear Cement Mill Industrial Centrifugal Blower Fan
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: Máy thổi SIMO 9-03
Availability: InStock

Chi tiết sản phẩm:

Nguồn gốc:	Trung Quốc
Hàng hiệu:	SIMO BLOWER
Chứng nhận:	CE/ISO9001/ISO45001
Số mô hình:	Máy thổi SIMO 9-03

Thông tin chi tiết

Nguồn gốc:

Trung Quốc

Hàng hiệu:

SIMO BLOWER

Chứng nhận:

CE/ISO9001/ISO45001

Số mô hình:

Máy thổi SIMO 9-03

Các ngành công nghiệp áp dụng:

Nhà máy sản xuất, Công trình xây dựng, Năng lượng & Khai khoáng, Hệ thống phát điện công nghiệp

Dịch vụ sau bán hàng được cung cấp:

Cài đặt, vận hành và đào tạo hiện trường

Nguồn gốc:

Henan, Trung Quốc

Điện áp:

380V/415V/440V/660V/6KV/10KV

Hỗ trợ tùy chỉnh:

OEM, ODM, OBM

Vật liệu lưỡi:

Thép carbon, thép không gỉ

Gắn kết:

Đứng miễn phí

Động cơ:

cánh quạt chống mài mòn

Cánh quạt:

Cánh quạt ngược

Bảo hành:

1 năm

Làm nổi bật:

High Light

Làm nổi bật:

heavy duty cement mill blower

industrial centrifugal fan for cement

antiwear single suction blower

Trading Information

Số lượng đặt hàng tối thiểu:

≥1 Đặt

Giá bán:

$500-1,0000.00/set

chi tiết đóng gói:

1. Vỏ gỗ xuất khẩu tiêu chuẩn 2. Gói vải chống nước pallet 3. Gói khác để đáp ứng yêu cầu của bạn

Thời gian giao hàng:

35 ngày sẽ được đàm phán

Điều khoản thanh toán:

L/c, t/t ,, d/p

Khả năng cung cấp:

300 thứ 30 ngày

Mô tả sản phẩm

Single Suction Heavy Duty Antiwear Cement Mill Industrial Centrifugal Blower Fan

This single-suction centrifugal blower is engineered for the severe-duty environment of cement milling operations. It features a heavy-duty construction with integrated anti-wear technologies, such as hardened impeller blades and protective linings, to withstand the highly abrasive nature of cement dust and raw meal. Designed for continuous, reliable operation, it provides the high-pressure airflow essential for material transport, ventilation, and process efficiency in cement production. Its robust design minimizes maintenance downtime and extends service life, making it a durable and cost-effective solution for the toughest industrial applications.

Product Features

It can output high pressure and is suitable for any industrial occasion where high pressure & normal temperature gas is required.
The energy transfer efficiency is high, the energy of the motor is directly applied to the impeller, and there is no energy consumption during the transfer.
The motor uses high-efficiency and energy-saving motors from China's leading motor manufacturers (and can also install branded motors required by users), with reliable quality and lower energy consumption.
It is made of high quality carbon steel, stainless steel or other metal materials are available upon request.
The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.
After the completion of production, after running test and vibration value detection, the operation is reliable.

Product Parameters

The following datas are only part of performance of our product.

If you can't find the datas you need, pls send us your performance requirements we will provide you customized design service.

Series no.	9-03 series	Feature selection
Performance	Impeller diameter	400-1800mm
Performance	Rotation speed	≤4000rpm
Pressure range		1581-10587Pa
Flow range		90.6-61297m³/h
Structure	Blade type	Forward
	Impeller support	SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
	Lubrication method	Oil bath lubrication, grease lubrication, lubrication oil station (Can be specified)
	Cooling method	Air cooling, Water cooling, Oil cooling (Can be specified)
Gas composition	Gas temperature	Normal \| Customer request \| Customer request \| ≥250ºC \| Customer request
Gas composition	gas characteristic	Clean gas \| Corrosive gas \| Particulate dust \| High temperature gas \| Flammable gas, explosive gas
System configuration	Motor brand	Chinese famous brand, ABB, Siemens, WEG etc (Can be specified)
	Impeller	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| Wear-resistant layer or wear-resistant liner, ceramic patch \| High temperature high quality alloy steel \| FRP, Aluminum alloy (Can be specified)
	Air inlet cone	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Casing	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Air damper	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Main shaft	High strength carbon steel, Alloy structural steel (Can be specified)
	Bearing	ZWZ, SKF, FAG, NSK (Can be specified)
	Bearing housing	Cast iron
Option parts		System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.

Detailed Photos

Installation Instructions

More than 300 sets of various processing and testing equipment, with an annual production capacity of 10,000 sets. Meet emergency delivery needs and guarantee your engineering time. Accurately control every link, ensure the production quality of equipment, and ensure zero error.
