| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | SIMO BLOWER |
| Chứng nhận: | CE/ISO9001/ISO45001 |
| Số mô hình: | Máy thổi SIMO 4-10 |

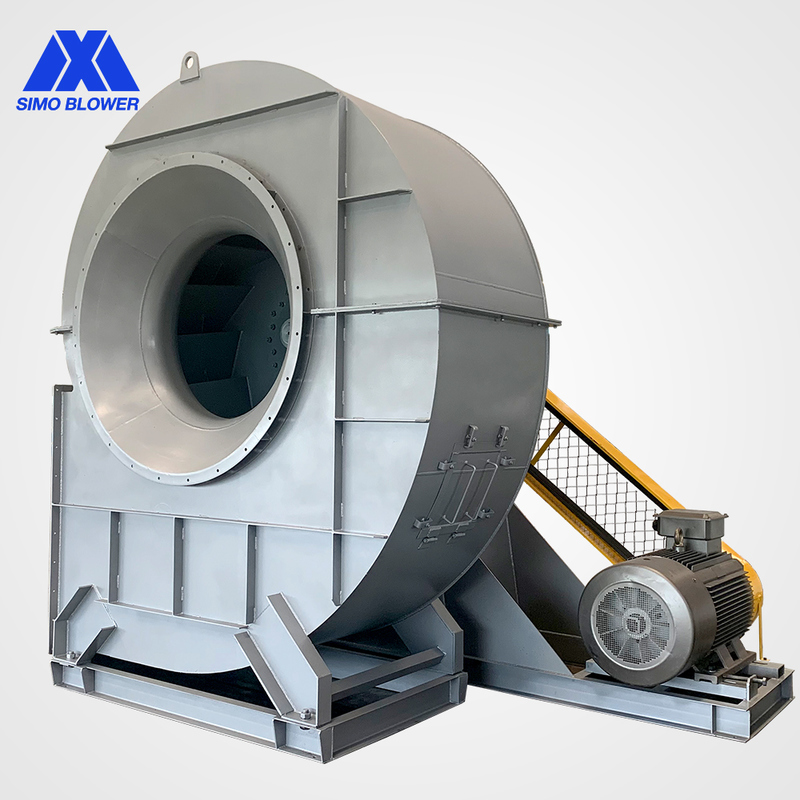

Specially engineered for raw material milling systems, this cycling air blower fan combines robust V-belt drive technology with exceptional wear resistance to withstand the abrasive conditions of material handling. The fan is designed to maintain reliable performance in continuous cycling operations, providing consistent airflow for raw mill ventilation and material conveying.
Constructed with wear-resistant alloys and protective linings in key areas, the fan effectively handles dust-laden air and abrasive particles, significantly extending service life. The V-belt drive system offers flexible speed adjustment, smooth power transmission, and easy maintenance, reducing operational costs and downtime.
Ideal for cement plants, mining operations, and industrial milling processes, this blower ensures efficient material transport and system ventilation while delivering energy-saving performance. Custom configurations are available to meet specific operational requirements, providing a durable and cost-effective solution for demanding industrial environments.
| Series no. | 4-10 series | Feature selection |
|---|---|---|
| Performance | Impeller diameter | 400-3000mm |
| Rotation speed | ≤4000rpm | |
| Pressure range | 615-8302Pa | |
| Flow range | 10696-952530m³/h | |
| Structure | Blade type | Backward, Straight, Aerofoil type |
| Impeller support | SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type | |
| Lubrication method | Oil bath lubrication, grease lubrication, lubrication oil station (Can be specified) | |
| Cooling method | Air cooling, Water cooling, Oil cooling (Can be specified) | |
| Driven mode | Direct driven, Coupling driven, Belt driven (Can be specified) | |
| Gas composition | Gas temperature | Normal | Customer request | Customer request | ≥250ºC | Customer request |
| gas characteristic | Clean gas | Corrosive gas | Particulate dust | High temperature gas | Flammable gas, explosive gas | |
| System configuration | Motor brand | Chinese famous brand, ABB, Siemens, WEG etc (Can be specified) |
| Material | Impeller | High quality carbon steel | FRP, Stainless steel, Rubber Lining | Wear-resistant layer or wear-resistant liner, ceramic patch | High temperature high quality alloy steel | FRP, Aluminum alloy (Can be specified) |
| Air inlet cone | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel (Can be specified) | |
| Casing | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel (Can be specified) | |
| Air damper | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel (Can be specified) | |
| Main shaft | High strength carbon steel, Alloy structural steel (Can be specified) | |
| Bearing | ZWZ, SKF, FAG, NSK (Can be specified) | |
| Bearing housing | Cast iron | |
| Foundation bolts | GB799-1988 | |
| Option parts | System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument. | |
We are strict with every step about the industrial centrifugal fan and axial fan.
Pursue excellent quality, make perfect product!
Delivery detail: 35 days after receive your payment
Answers: Xinxiang SIMO BLOWER Co.,Ltd was founded in 1955. We have more than 70 years experience on centrifugal fan. We are manufacturer. Our product has been delivered to more than 100 countries and cities.
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition. To make sure the centrifugal fan efficiency operation. And also welcome to visit SIMO BLOWER to see the products production process and quality monitoring system. After sales service, we will offer 12 months' repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
Answers: All of our product are produced by our company will pass ISO 9001-2008 and CE.
