| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | SIMO BLOWER |
| Chứng nhận: | CE/ISO9001/ISO45001 |

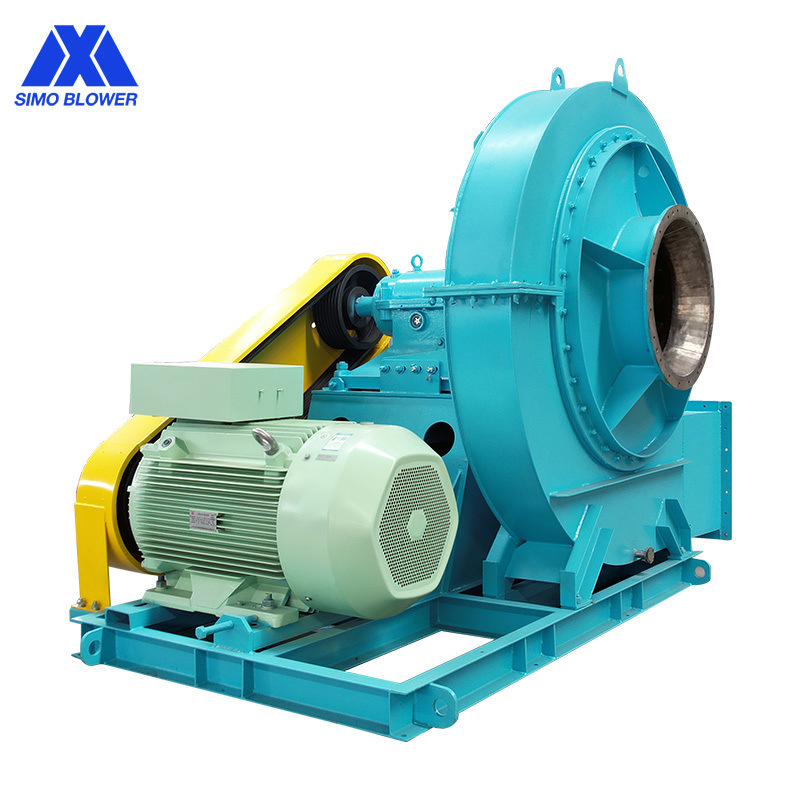

| Số mô hình: | Máy thổi SIMO 9-08 |
SIMO Blower has been deeply involved in the chemical industry for many years and has designed many new models for use, which have received widespread praise from customers worldwide.
| Series no. | 9-08 series | Feature selection |
|---|---|---|
| Performance | Impeller diameter | 400-3500mm |
| Rotation speed | ≤3000rpm | |
| Pressure range | 3215-27349Pa | |
| Flow range | 1049-330301m3/h | |
| Structure | Blade type | Backward, Straight, Aerofoil type |
| Impeller support | SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type | |
| Lubrication method | Oil bath lubrication, grease lubrication, lubrication oil station (Can be specified) | |
| Cooling method | Air cooling, Water cooling, Oil cooling (Can be specified) | |
| Driven mode | Direct driven, Coupling driven, Belt driven (Can be specified) | |
| Gas composition | Gas temperature | Normal | Customer request | Customer request | ≥250ºC | Customer request |
| gas characteristic | Clean gas | Corrosive gas | Particulate dust | High temperature gas | Flammable gas, explosive gas | |
| System configuration | Motor brand | Chinese famous brand, ABB, Siemens, WEG etc (Can be specified) |
| Impeller | High quality carbon steel | FRP, Stainless steel, Rubber Lining | Wear-resistant layer or wear-resistant liner, ceramic patch | High temperature high quality alloy steel | FRP, Aluminum alloy (Can be specified) | |
| Air inlet cone | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel (Can be specified) | |
| Casing | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel (Can be specified) | |
| Air damper | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel (Can be specified) | |
| Main shaft | High strength carbon steel, Alloy structural steel (Can be specified) | |
| Bearing | ZWZ, SKF, FAG, NSK (Can be specified) | |
| Bearing housing | Cast iron | |
| Foundation bolts | GB799-1988 | |
| Option parts | System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument. | |
If you have requirements of our products, please leave us the parameter information of your need, and then our technical engineers will provide you with professional fan solutions.
If you have a need for a fan in the Petrochemical industry, please provide the operating requirements and parameter information, and we will provide you with professional fan solutions.
Contact Us for Custom Solutions
