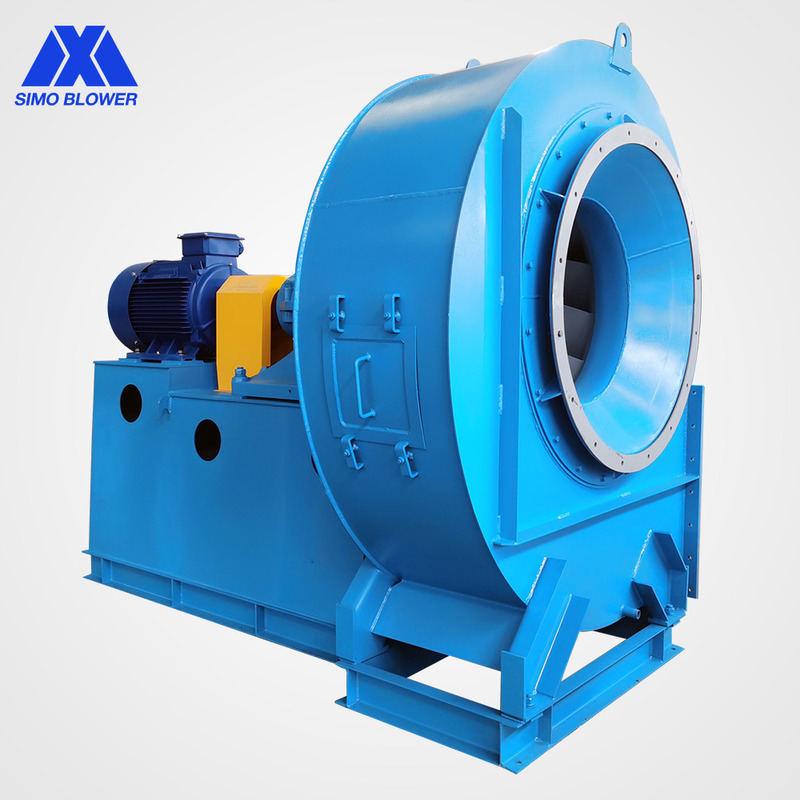

Q345 high quality carbon steel high efficiency industrial centrifugal fan manufacturer

Name: Q345 high quality carbon steel high efficiency industrial centrifugal fan manufacturer
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: Máy thổi SIMO 5-12
Availability: InStock

Chi tiết sản phẩm:

Nguồn gốc:	Trung Quốc
Hàng hiệu:	SIMO BLOWER
Chứng nhận:	CE/ISO9001/ISO45001
Số mô hình:	Máy thổi SIMO 5-12

Thông tin chi tiết

Nguồn gốc:

Trung Quốc

Hàng hiệu:

SIMO BLOWER

Chứng nhận:

CE/ISO9001/ISO45001

Số mô hình:

Máy thổi SIMO 5-12

Các ngành công nghiệp áp dụng:

Nhà máy sản xuất, Công trình xây dựng, Năng lượng & Khai thác, Hệ thống Thế hệ Công nghiệp

Dịch vụ sau bán hàng được cung cấp:

Cài đặt, vận hành và đào tạo hiện trường

Nguồn gốc:

Henan, Trung Quốc

Điện áp:

380V/415V/440V/660V/6kV/10kV

Hỗ trợ tùy chỉnh:

OEM, ODM, OBM

Vật liệu lưỡi:

Thép carbon, thép không gỉ

Gắn kết:

Đứng miễn phí

Động cơ:

mặc lưỡi cánh quạt chống chịu

Cánh quạt:

Lưỡi cánh quạt lạc hậu

Bảo hành:

1 năm

Làm nổi bật:

High Light

Làm nổi bật:

Q345 carbon steel industrial fan

high efficiency centrifugal fan

industrial centrifugal fan manufacturer

Trading Information

Số lượng đặt hàng tối thiểu:

≥1 Đặt

Giá bán:

$500-1,0000.00/set

chi tiết đóng gói:

1. Vỏ gỗ xuất khẩu tiêu chuẩn 2. Gói vải chống nước pallet 3. Gói khác để đáp ứng yêu cầu của bạn

Thời gian giao hàng:

35 ngày sẽ được đàm phán

Điều khoản thanh toán:

L/c, t/t ,, d/p

Khả năng cung cấp:

300 thứ 30 ngày

Mô tả sản phẩm

Industrial Three-Phase Power High-Quality Dust Removal Centrifugal Blower Fan

This type of dry gas sealed fan is designed for the chemical industry, capable of effectively conveying harmful corrosive gases. Constructed with corrosion-resistant materials, these fans ensure stable operation in harsh environments, meeting the safety and reliability requirements of chemical production.

Product Features

It is capable of outputting a higher outlet pressure while providing more gas flow with lower noise. Stable operation at higher media temperatures.
The fan speed can be flexibly set by matching different pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.
Motor sliding guides are provided for easy tensioning of the belt to reduce energy loss due to belt slack.
The bearing housing is reserved for temperature and vibration sensor mounting positions, for convenient to install the fan operation monitoring device.
Use liquid lubricant, it is not necessary to open the bearing housing to replace and fill the oil. The bearing housing is provided with an observation window for easy observation of the quality and stock of the lubricating oil.
The bearing housing uses a labyrinth mechanical seal, a unique Leak proof oil design inside, a vent hole at the top, and a sealant on the joint, completely eliminating the possibility of oil leakage in the bearing housing.
The impeller is annealed to completely eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.

Performance

Series no.	5-12 series	Feature selection
Performance	Impeller diameter	400-3300mm
	Rotation speed	≤4000rpm
	Pressure range	684-8687Pa
	Flow range	590.4-700735m³/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
	Lubrication method	Oil bath lubrication, grease lubrication, lubrication oil station (Can be specified)
Cooling method	Air cooling, Water cooling, Oil cooling (Can be specified)
Driven mode	Direct driven, Coupling driven, Belt driven (Can be specified)
Gas composition	Gas temperature	Normal \| Customer request \| Customer request \| ≥250ºC \| Customer request
Gas composition	gas characteristic	Clean gas \| Corrosive gas \| Particulate dust \| High temperature gas \| Flammable gas, explosive gas
System configuration	Motor brand	Chinese famous brand, ABB, Siemens, WEG etc (Can be specified)
	Impeller	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| Wear-resistant layer or wear-resistant liner, ceramic patch \| High temperature high quality alloy steel \| FRP, Aluminum alloy (Can be specified)
	Air inlet cone	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Casing	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Air damper	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Main shaft	High strength carbon steel, Alloy structural steel (Can be specified)
	Bearing	ZWZ, SKF, FAG, NSK (Can be specified)
	Bearing housing	Cast iron
Foundation bolts	GB799-1988
Option parts	System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.
